Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup

Brand Name : QJ

Place of Origin : shanghai

MOQ : ≧1

Price : FOB$20000-200000/unit

Payment Terms : L/C, T/T

Supply Ability : 1-10units/40days

Delivery Time : 40days

Packaging Details : International standard package or your request

Voltage : 380V or Customized

Filling Material : Beer, Milk, Water, Oil, Juice

Main structure : SUS304 and SUS316L stainless steel

After-sales Service : Service Machinery Overseas

Filling Accuracy : ±0.5%

Feature : Easy Operation

Contact Now

Aseptic Filling Machine All Kinds Of Extraction Liquid, Pure Dew, Oligofructose Glucose Syrup Filling Equipment
Application:
The aseptic Filling Systems combined Italian technology and conform to Euro-standard, is a highly effective and reliable. aseptic method of bulk packaging for high and low-acid food products.
Widely used in aseptic packaging of tomato paste, jam, fruit juice, juice concentrate, vegetable juice, purees, pulp, concentrates, sauces, soups and dairy products.
The natural fruit, juice or pulp can be kept more than one year under constant temperature, the concentrated fruit juice or paste can be kept more than two years.
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
No.
Used for
1
Juice & Concentrate
2
Pulp , Puree & Concentrate
3
Concentrate
4
Dairy & Cream
5
Other Liquid Product, etc.
No.
End Product Package
1
200L, 220L---Aseptic Bag
2
1L, 3L, 10L,25L---Aseptic Bag
3
1000L, 1400L---Ton-bin Bag
Description of Process:
The aseptic filling machine is connected with the Sterilizer directly; it will fill the products into aseptic bags after sterilizing. Actually, the aseptic filling system consists of the sterilizer and the aseptic filler. The product will be sterilized and cooled to the ambient temperature, then be conveyed to the aseptic filler by the connecting tubes.
The product will never be exposed in the air during the process and will be filled into the aseptic bags in the filling chamber of the filler that is protected by the steam. So, the whole process will be made in a closed and safety aseptic system.
Product series
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
Bag in Box (BIB) Filler
Single-head Bag in Drum (BID) Filler
Double-head Bag in Drum (BID) Filler
Intermediate Bulk Container (IBC) Filler

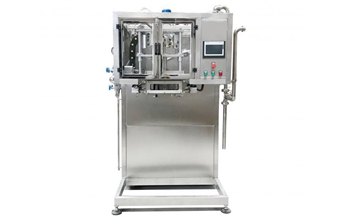

Bag in box (BIB) aseptic filling machine
Filling mouth is 1 inch ordinary mouth, suitable for filling 2-25L aseptic bag. Filling accuracy is controlled by flowmeter

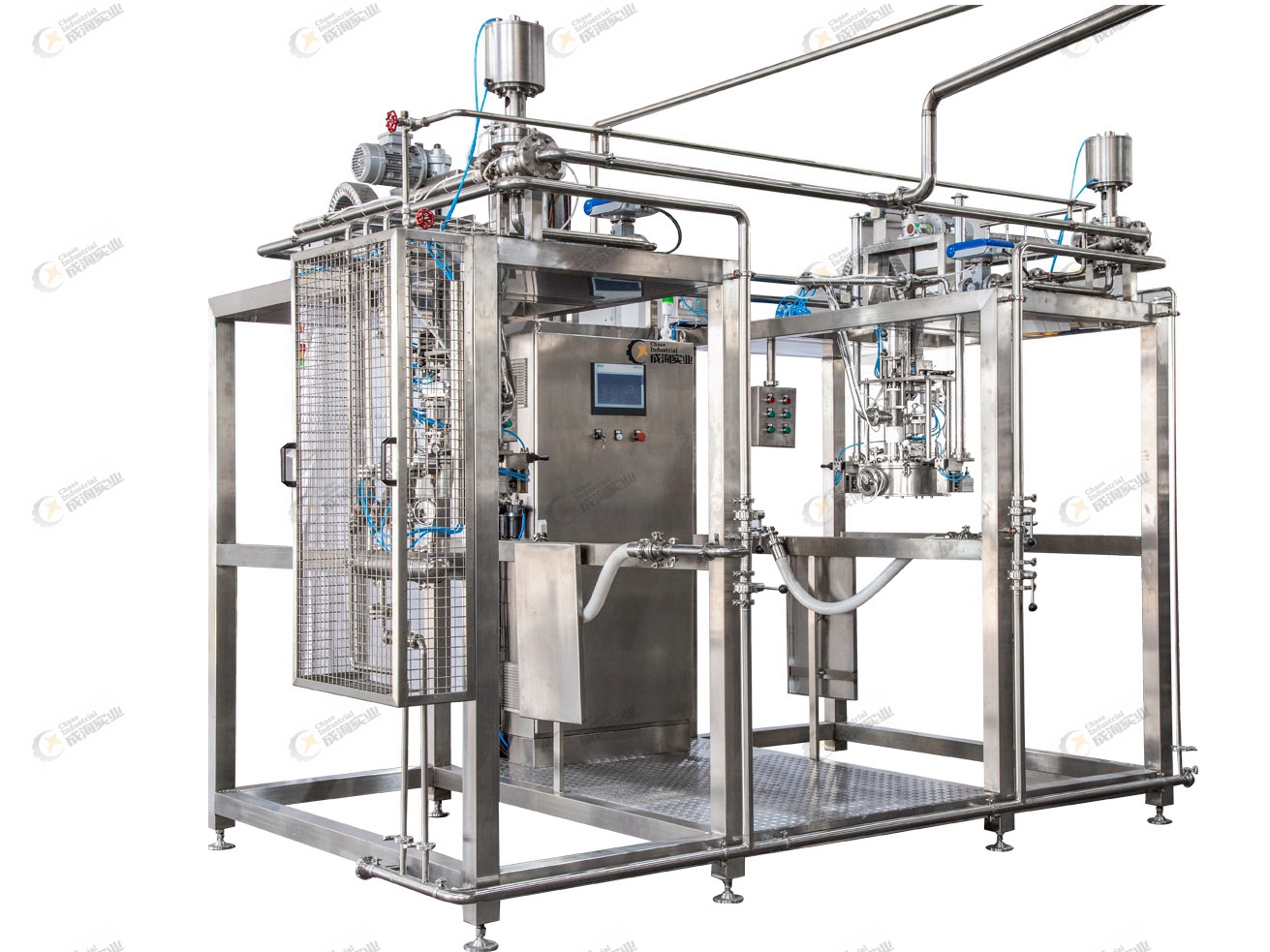

Large bucket aseptic bag filling machine
The filling port is the butterfly valve port (VITOP), which is suitable for 25-220L aseptic bag filling in drums. Filling accuracy
is measured by a weight sensor or flowmeter

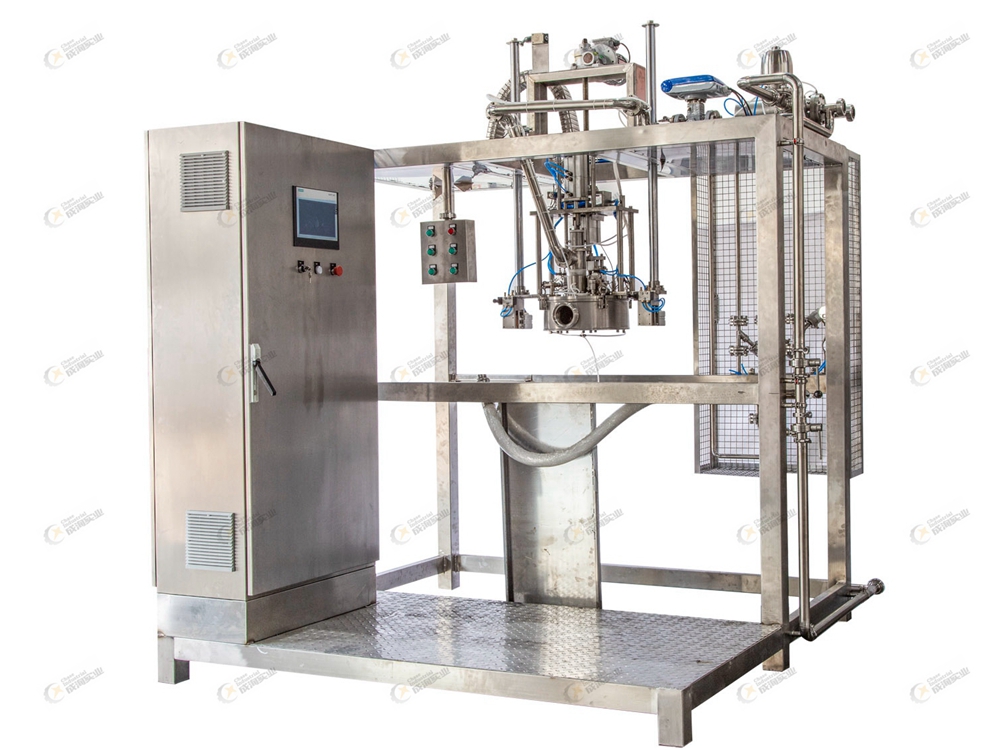

Ton box (IBC) aseptic bag filling machine
Filling port is butterfly valve port (VITOP), suitable for 1000L sterile bag ton box. The filling accuracy is measured by weighing
system
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
Aseptic Filling Machine For Extraction Liquid Pure Dew Oligofructose Glucose Syrup
